Dredge Pipeline Components

200 piece floaters for 8-inch pipe. Built in 2019. Location: Netherlands

Approximately 2,400 m of 8-inch SDR 17 & SDR 26 HDPE Pipe mixed with couplings and flanges. 200 pieces of 12 m lengths. Pipes was only used 100 hours total. About 50 pieces were never used (new). Produced in 2019. Location: Netherlands

1,476-feet (450 m) of 8-inch floating hose. Total of 44 pieces of floating hose and 18 (complete sets) of the orange floaters. Never used. Like new on stock for 4 years. Can be transportable on 2 flatbed trailers.  Location: Netherlands

15,840-feet of 10-inch SDR 7 used to transfer produced water. Pipe is in 50' sections.  Location: state of Tennessee, USA

Quantity available: 1,550-feet of 6-inch SDR 17 used pipe in 50' lengths.  Location: state of Wyoming, USA

Quantity available: 2,154-feet with 1.00-inch wall thickness. Lengths vary. The pipe was used to transport phosphate slurry. It is very clean with no residue inside or out.  Location: State of Florida, USA

Quantity available: 650-feet with 1.25-inch wall thickness, 174-feet with 1.85-inch wall thickness and 84-feet with 1.50-inch wall thickness. Lengths vary. The pipe was used to transport phosphate slurry. It is very clean with no residue inside or out. Location: State of Florida, USA

Quantity available: 1000-1100 feet continuous (will cut and load) AND 3 pieces 50-ft long. Total 1,100 to 1,200-feet. The pipe was used to transport phosphate slurry. It is very clean with no residue inside or out. Location: State of Florida, USA

4,000-feet available -  12-inch SDR 17 HDPE Pipe. Mostly in 50-ft sections. The pipe was used for a few dredging projects over a few months pumping mud/clay/water slurries.  Location: State of California, USA

Quantity available: 600-feet. 30 sections of 4-inch SDR 17 Pipe in 20-foot lengths. Pipe only used for a couple of weeks to pump water.  Location: State of Missouri, USA

6700-feet available of 10-inch SDR 13.5. Cut at the seams in 50’ sections. Only in production for 6-8 months. Never buried.  Location: state of Oklahoma, USA

Quantity Available: 475.8 m (1,560-feet) in lengths of 12.20 m (40-feet). Total of 39 pieces. Hose purchased in 2011 but never used.   Location: Netherlands

Quantity available: 21,000-feet of 4-inch SDR 11 Pipe in 50-foot lengths. Location: State of Wyoming, USA

Quantity available: 9,000-feet  of 8-inch SDR 11 Pipe in 50-foot lengths.  Location: State of Wyoming, USA

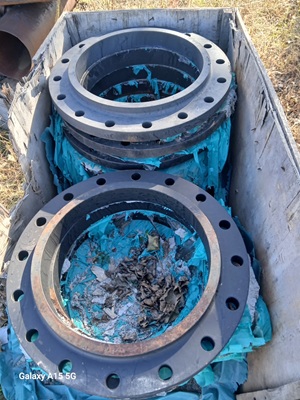

Available: 36 total. The collar portion of the flange is 1/4" thick aluminum with 1/2" bolt holes to connect to the pipe. The face of the flange is 1/2" thick with 1/2" bolt holes.  Pipe sold separately. see pipe listing.   Location: State of Florida, USA

Available: 800-feet of 10-inch SDR 17 Pipe. Approximate 50-foot sections. Flanges sold separately. See flange listing. Location: State of Florida, USA

Quantity Available: 3,350-feet. The pipe has no internal wear and light external handling marks. The pipe is construed of 4710 resin.  Location: state of New Jersey, USA

Quantity Available - 3,800 Feet - 8” DR7 3408/4710 OG PE 50 WL Plastics - New Surplus without MTRs  Location: State of Texas, USA

Quantity Available: 2,500-feet of 10-inch SDR 11 Pipe with 10 flanges and rings. Pipe is cut and stacked in 50’ lengths and has outer cosmetic scrapes but structurally sound with minimal interior wear but there are many welds.  Location: State of Oregon, USA

Quantity Available: 9,000-feet of 14-inch SDR 17 Pipe in 50-foot lengths. Location: State of Wyoming, USA

Quantity Available: 800-feet of 14-inch SDR 17 HDPE Pipe. There are 100 pieces of 50-ft lengths. 55 joints have a stub end and backup ring in one end. The pipe was used on one job, to pump about 75,000 tons of fine river sand. The pipe is in very good condition. Location: State of Illinois, USA

1,800-feet of 8-inch 26 Pipe in 20-foot lengths. The pipes were originally 40-footers with a Gheen quick release coupling on each end, but they were cut in half, so there are now 45 pieces, 20-foot long with a male coupling and a square cut end, and 45-pieces, 20-foot long with a female coupling and a square cut end.  There are no clamps for coupling the Gheen fittings. Clamps can be purchased separately from Gheen Irrigation Works.  Reported by the owner to be in excellent condition. Location: State of Texas, USA

This 600-mm (24-inch) Dredge Hose was briefly used and is in great condition. Quantity Available: 2,106-feet in mostly 35-foot lengths. Location: Thailand

Approximately 1,700-feet of 8-inch SDR 26 HDPE Pipe with Mixed Gheene Ends and Flanges. Some ends have no fittings. On a scale of 1 to 10 the condition is about 5. Location: State of Texas, USA

Quantity Available: 2,000-feet in 50-foot lengths. Location: State of Texas, USA
